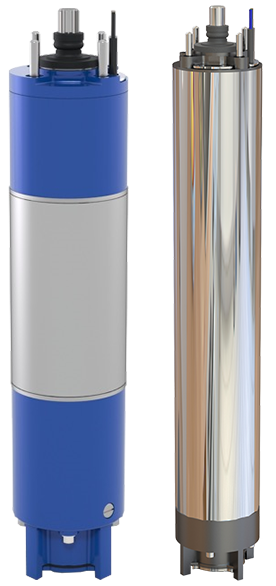

Submersible Motors Submersible
Motors

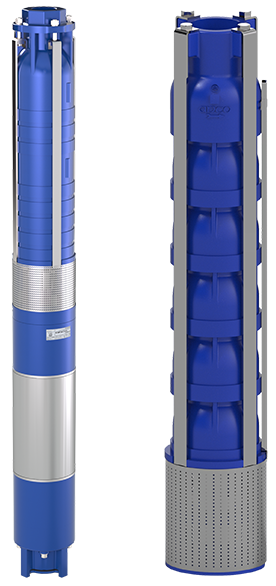

Submersible Pumpsets Submersible Pumpsets
Monobloc Pumps Monobloc Pumps

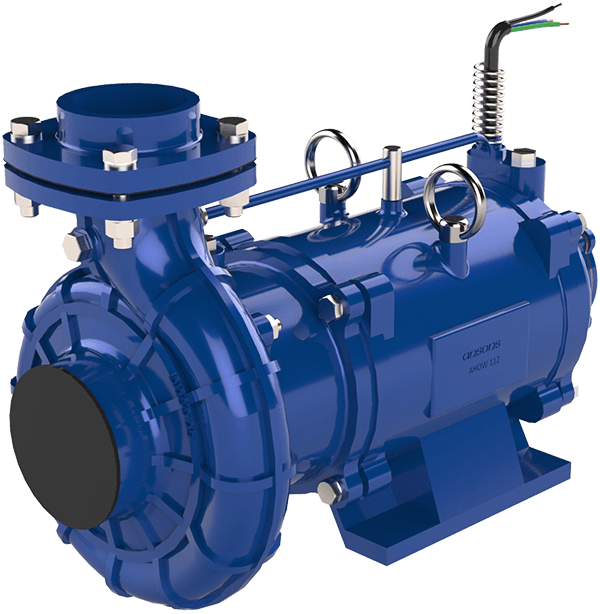

Openwell Submersible Pumps Openwell Submersible Pumps
Domestic Pumps Domestic Pumps

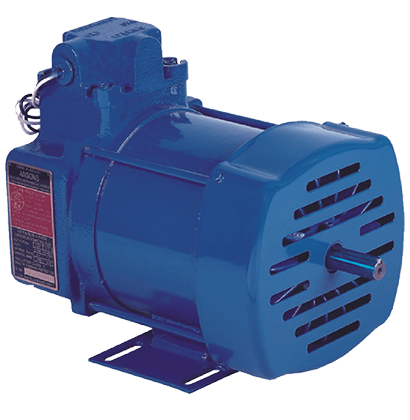

Flameproof Motors Flameproof Motors
4 in Oil filled Motors

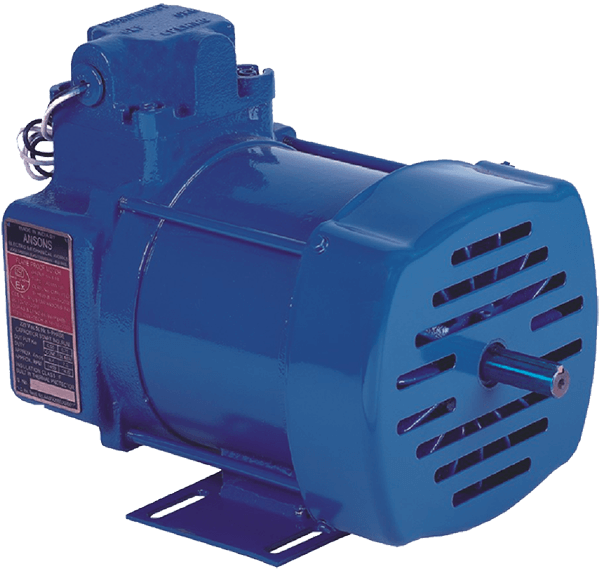

Flameproof Motors
General Specifications
Approval ATEX Mark by DNV GL Presafe AS for II 2 G Ex db IIB T4 Gb ( - 20 °C ≤ Ta ≤ + 55 °C )
BIS marks - IS/ IEC 60079 - 1 : 2014 , Gas Group IIA & IIB
PESO Approval No : A/P/HQ/MH/104/6907 (P519110)
Power Ratings
# kW(Max.) HP(Max.) No. of Phases No. of Poles
1 0.37 0.50 3 2
2 0.55 0.75 3 2
3 0.75 1.00 3 2
4 0.37 0.50 3 4
5 0.55 0.75 3 4
6 0.75 1.00 3 4
7 0.75 1.00 1 CSCR 2
8 0.18 0.25 1 CSCR 4
9 0.25 0.33 1 CSCR 4
10 0.37 0.50 1 CSCR 4
11 0.55 0.75 1 CSCR 4
12 0.75 1.00 1 CSCR 4
13 0.37 0.50 1 CSCR 6
Operating Limits Maximum Ambient Temperature + 55 °C & Minimum Ambient Temperature -20 °C
Voltage Range Single Phase - 220 V AC (±10%)
& 230 V AC (±10%)
Three Phase - 415 V AC (±10%) & 380 (±10%)
Frequency 50 Hz , ±3%
Insulation Class F
Degree of Protection IP 55
Frame FP 100
Poles 2, 4, 6
Motor Type 1 φ Ratings : Capacitor Start - Capacitor Run ; Totally Enclosed Fan Cooled ( TEFC )
3 φ Ratings : Totally Enclosed Fan Cooled ( TEFC )
Efficiency Class IE2
Mounting Foot ( B3 )
Duty Cycle S1
Rating Continuous
Thermal Protector Built in ( for Single Phase only )
